Org Chart

Visualize, build, and manage your organization's reporting lines and managerial hierarchy.

The Org Chart is an interactive canvas of who reports to whom. Reporting lines let managers follow their direct reports' learning from the Group Lead Portal and keep your organization's structure visible in one place.

To open it, go to People > Org Chart in the Admin Portal sidebar.


1. Visualizing the Hierarchy

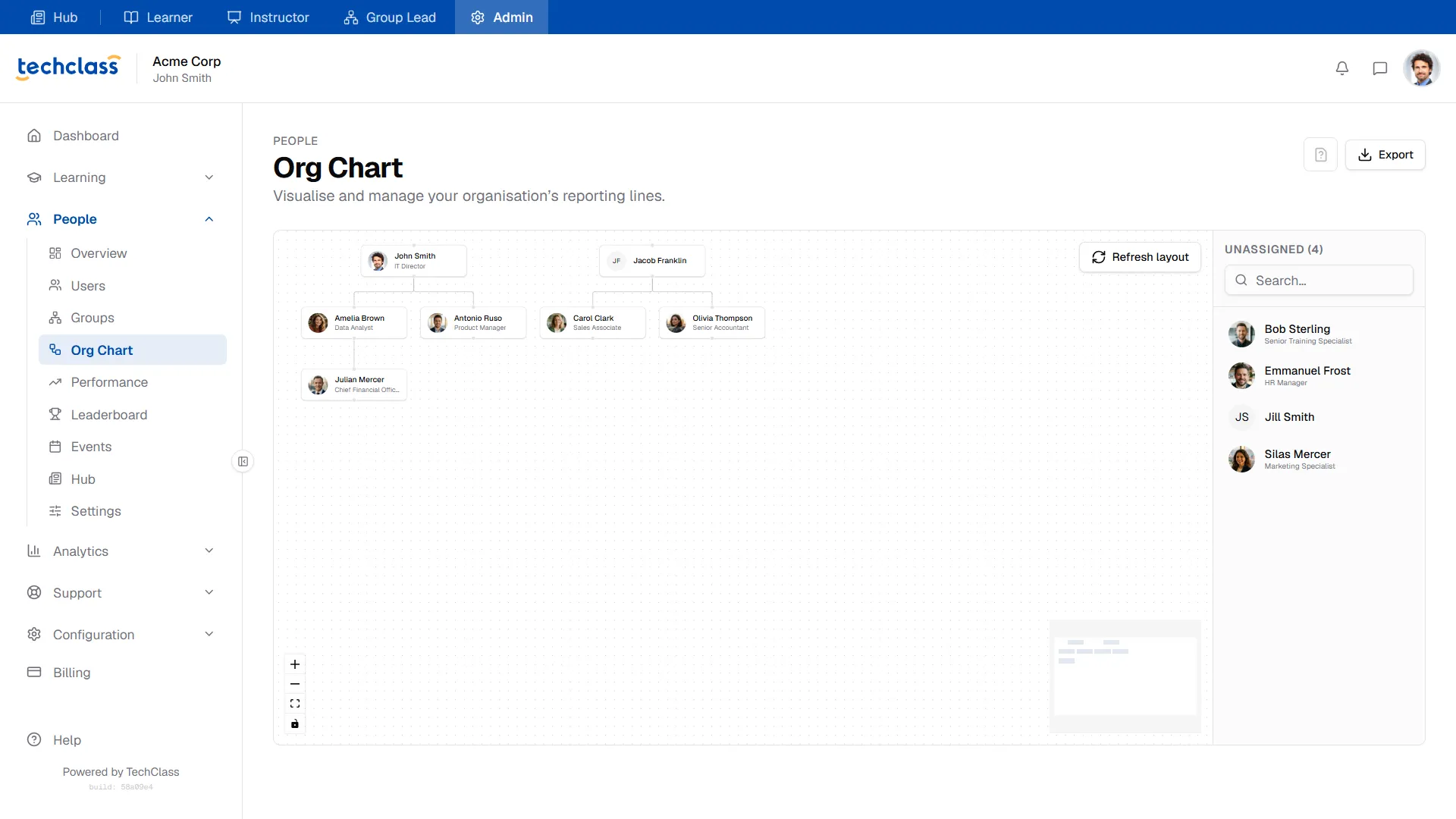

The canvas lays out your organization as a tree: one card per person, with their avatar, name and job title, and lines from each manager to their direct reports.

Moving around a large organization:

  • Zoom and pan: Drag the canvas to pan, and use the + and − controls in the bottom-left corner, or the mouse wheel, to zoom. The fit control brings the whole chart into view, and the lock control freezes the canvas while you read it.
  • Mini-map: The small overview in the bottom-right corner shows where you are and lets you jump to another branch.
  • Refresh layout: If the tree looks untidy after changes, click Refresh layout to re-align it.
  • Export in the top-right corner downloads the current structure for use outside TechClass.

2. Building the Chart

The Unassigned panel on the right lists everyone who has no manager yet. Search for a person there and drag their card onto a manager's card on the canvas; they become a direct report of that manager at once and leave the Unassigned list. When everyone is placed, the panel reads Everyone has a manager.


3. Assigning a Manager from the Profile

Reporting lines can also be set one person at a time. Open the person under People > Users, and on the Information tab click the pencil beside Manager to pick their manager. The Org Chart updates immediately, so both ways of working stay in sync.
